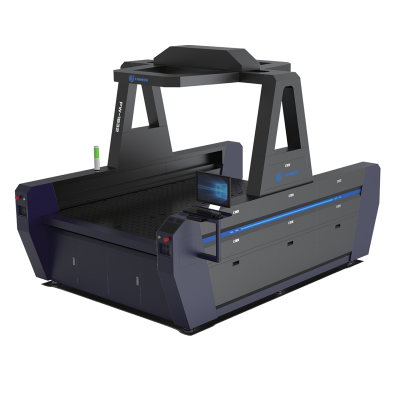

STAR JET

SKU : ST 1825PRO

Model ST 1825PRO

รายละเอียดสินค้า

Name	STAR JET
Model	ST 1825PRO
Laserhead	Two Rods Two Heads ( Laser Heads Can Be Customized )
Working Area	1800 x 2500 ( W x L )
Laser Power	200W
Machine Power	3.5 KW
Cutting Speed	0 - 72000 mm./min
Cutting Thickness	2 mm.
Machine structure	Sunken Side Tube Sheet Metal Chassis Structure,Adopt The Bottom Light Output
Camera Brand	4K Cannon Camera + Wide + Angle Lens Camera
Marerial Type	Polyester, Linen, Canvas, non - Woven Fabrics, Advertising Fabric, Lace, Embroidery, Chemical, Fiber, Fabrics, Scarves Etc
Cooling Method	Water Chiller

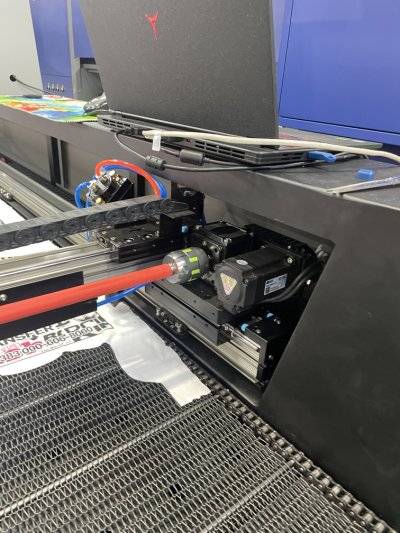

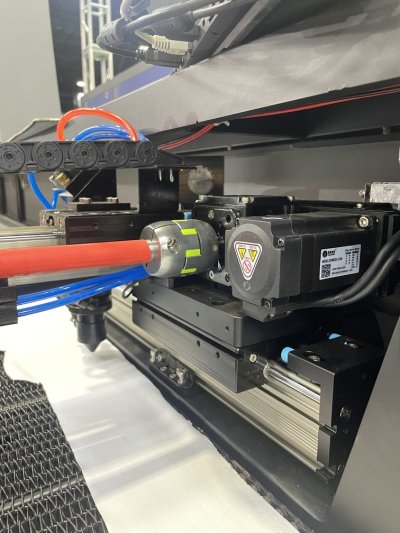

Drive Method	Parallel Bar 6 - Motor Closed - Loop Servo Drive System
Graphics Available	DXF , PDF , PLT ,AI

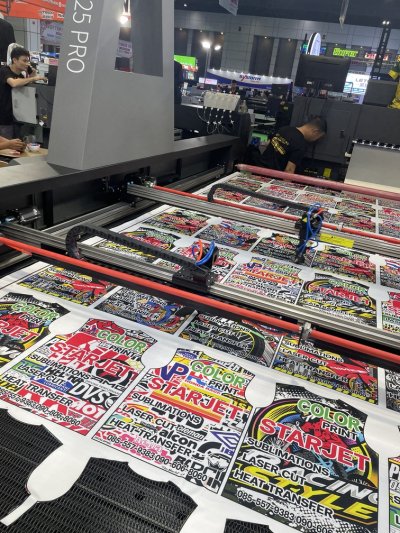

Transfer Moode	Mesh Belt Conveyor, automatic Feeder
Guide Rail	Aviation Aluminum Large Guide Rail , Widen Guider , Double Froove Bearing Wheel , Sliding Silent With High Speed , Durable And Maintenance-Free
Accessory Matching	U-Shaped Frame Support Rod + Press Roller + Roller Brush + Automatic Feeder
Computer	Windows : 10pro 64bit
	CPU : Intel i5 / i7 - 14700KF LGA 1700 UP
	Mainboard : Asus , Atrock
	Ram : 16GB
Voltage	AC220V/110V, 50/60HZ
Machine Size	3910 x 2280 x 2530 (mm L x W x L)
Net Weight	1500 KG.
